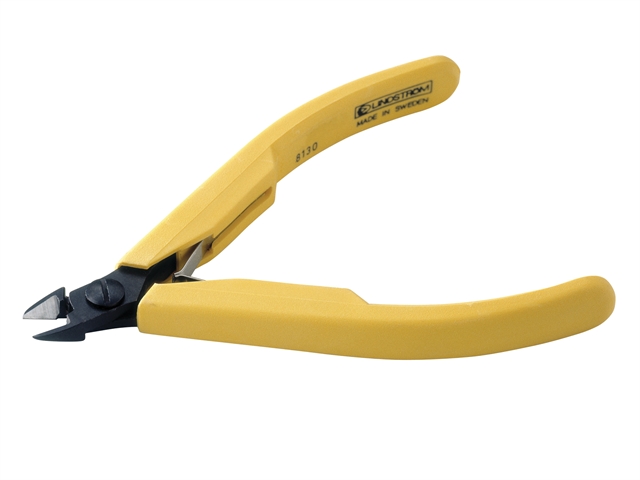

Length (A): 110mm (4.3/8 in)Blade length (B): 10mm (0.39 in). Head width (C): 10mm (0.39 in). Head depth (D): 6mm (0.24 in). Tip width: (F): 0.8mm (0.03 in).Cutting Capacity: 0.1-1.25mm.
Cutting edge: Flush Bevel.
The Flush Bevel cut is designed to meet the requirements of the electronic assembly industry. Leads are ‘pinched’, allowing less altitude and a smaller overall surface area – more than Micro-bevel cuts. The cutters have fine cutting edges that leave a narrow and short taper and small exposed area. They can be used to meet tight specifications for a flush result to a board, component or part.
