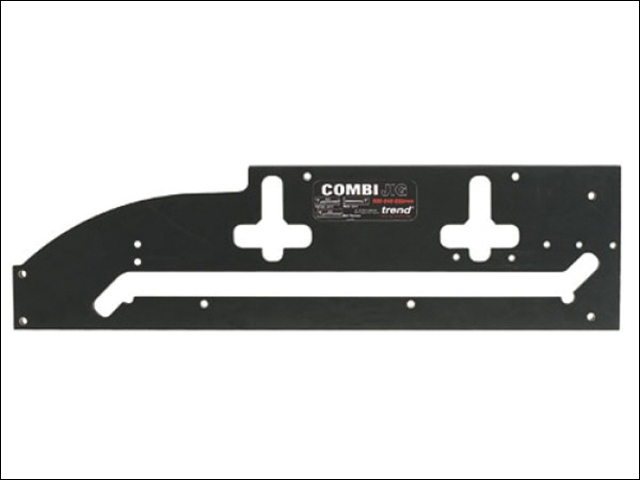

This worktop jig is machined from hardwearing solid laminate and is designed to enable all 1/2 inch shank plunge routers to cut precise butt and scribe joints in postform worktops.It will produce a joint in 15 minutes including setting-up time and out-of-square joints can be accommodated up to 3° .
Facilities to cut various widths of board and thicknesses up to 42 mm.Integral panel bolt connector recessing template with easy spanner access.Width setting stop for accurate positioning.Supplied with clear and comprehensive instructions for use.A single male and female template in 16 mm solid laminate.Facility to join boards from 500 mm to 650 mm wide. Two bolt recess slot for connecting bolts.Three alloy location bushes and width setting stop.Cuts out of square joints (max. 3 degree).
Jig requires:A portable plunge router with 12.7 mm (1/2 inch) shank capacity and minimum 1300 watts.A template guide bush with 30 mm outside diameter.A TCT router cutter with 12.7 mm (1/2 inch) diameter and 50 mm (2 inch) cut length.Two 100 mm (4 inch) throat clamps.
